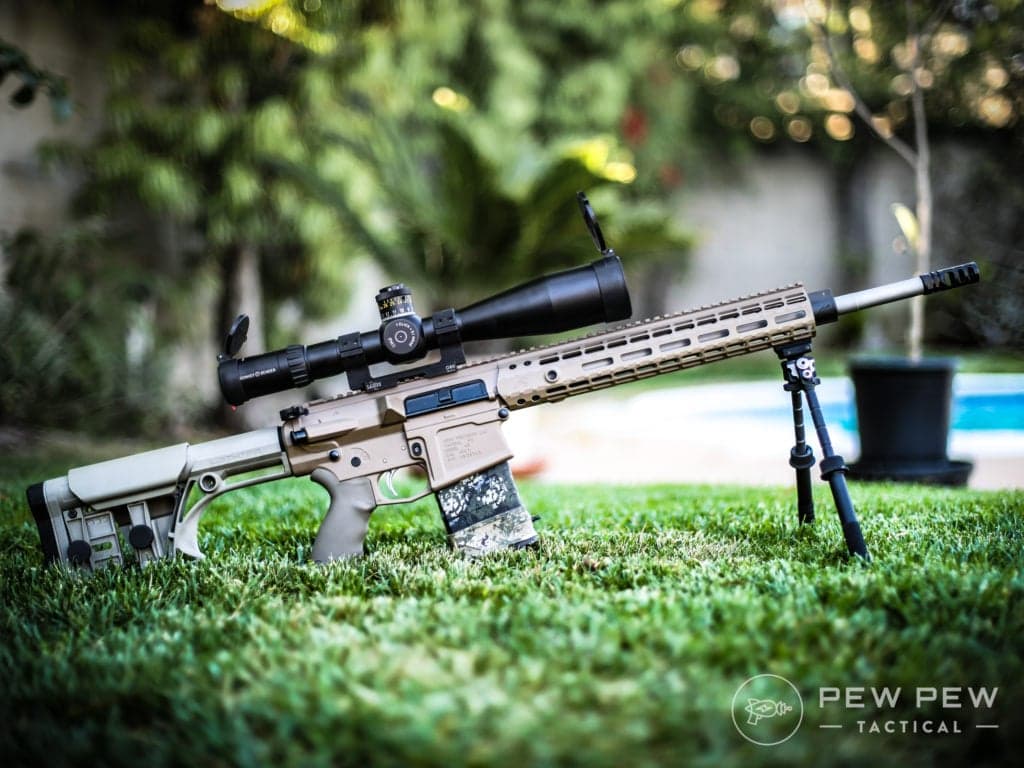

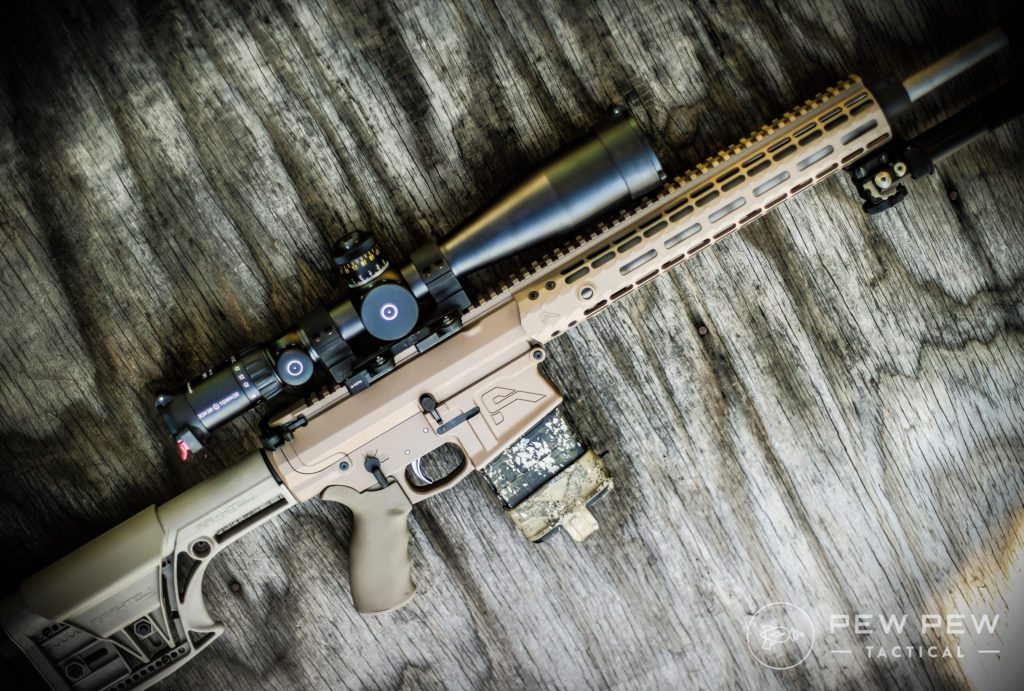

Aero’s Take on the .308 AR-10 Platform

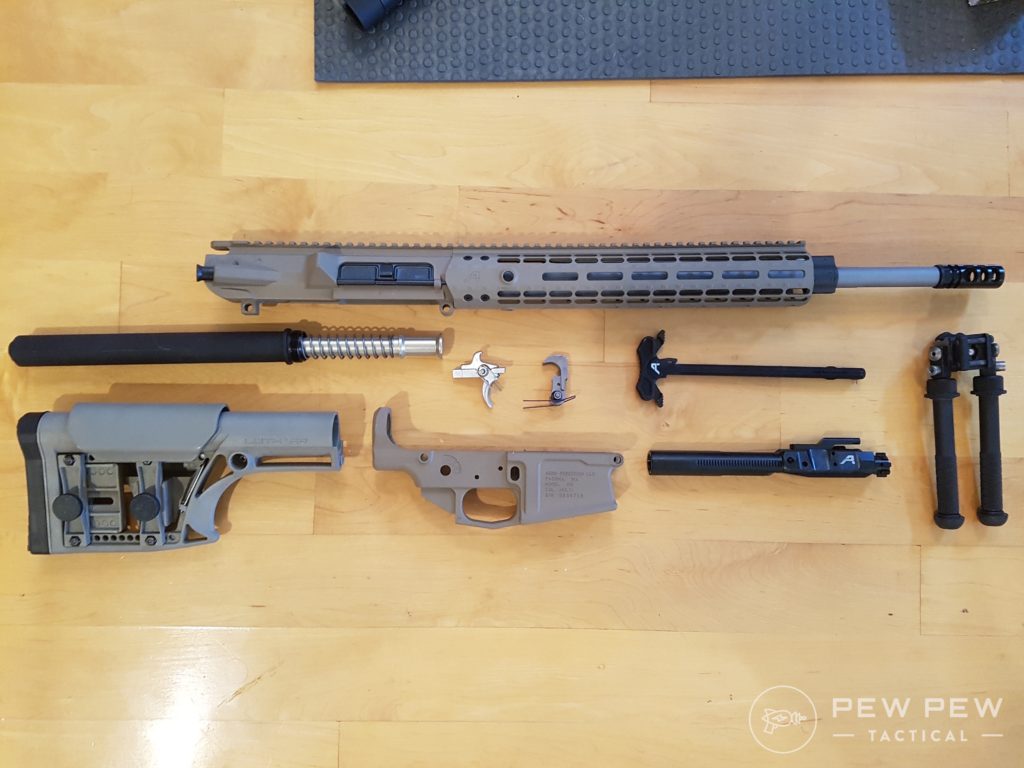

The world of AR-10’s is a lot more confusing than AR-15’s since many manufacturers’ parts do not play nicely with each other. So I heavily recommend sticking with one maker…at least for the upper, lower, and lower parts kits. Without further ado… The full rifle I got was the M5E1 18″ Stainless Barrel ($1500-1800). I knew from the get-go that I would change a bunch of stuff so I opted out of the complete rifle set. But they have a pretty good setup with the Magpul PRS buttstock & grip.
- Aero .308 stripped lower (with lower parts kit), $185 or $210 Cerakoted
- Aero Rifle length buffer system ($65)
- Aero .308 BCG ($175)
- Aero Ambi Charging Handle ($90)
- VG6 Gamma 7.62 ($90)
- ALG ACT Trigger ($70)
- Luth MBA Buttstock ($140)
- Atlas Bipod ($280)
- Ergo Pistol Grip ($24)
Who Is It For?
The M5E1 .308 is for someone who is familiar with the AR-15 but wants something with a bit more oomph and range. But be ready for the added expenses to…everything. From ammo to scopes to rifle…you’re going to be paying a lot more than AR-15 prices.Fit & Feel

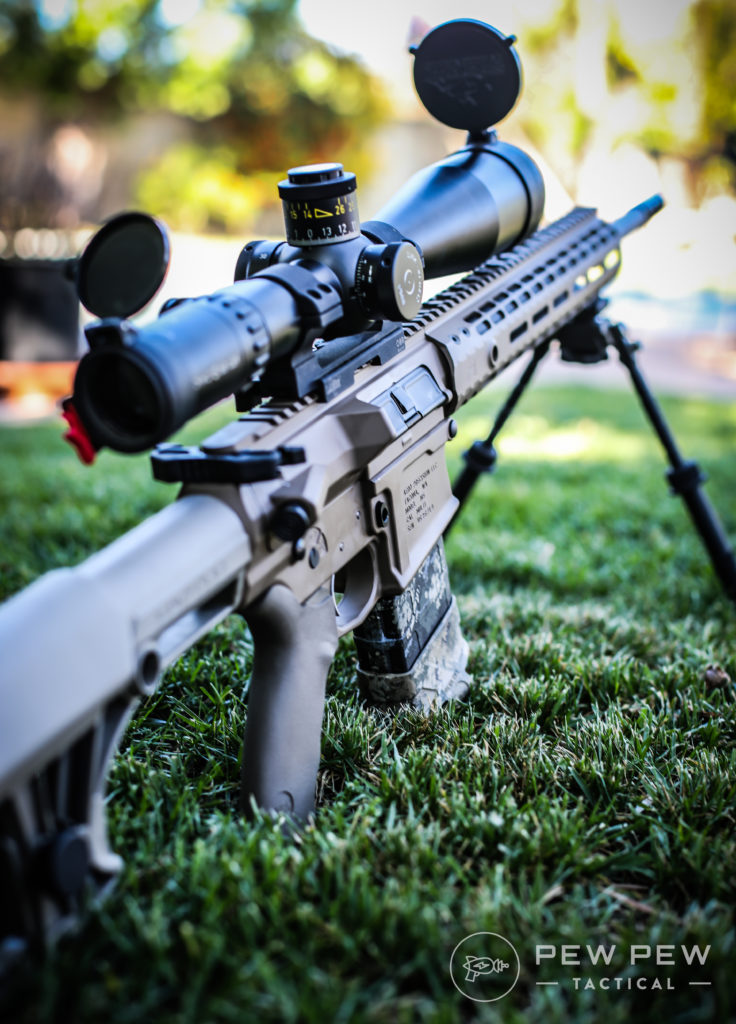

I don’t know what else to say…it is dead sexy.

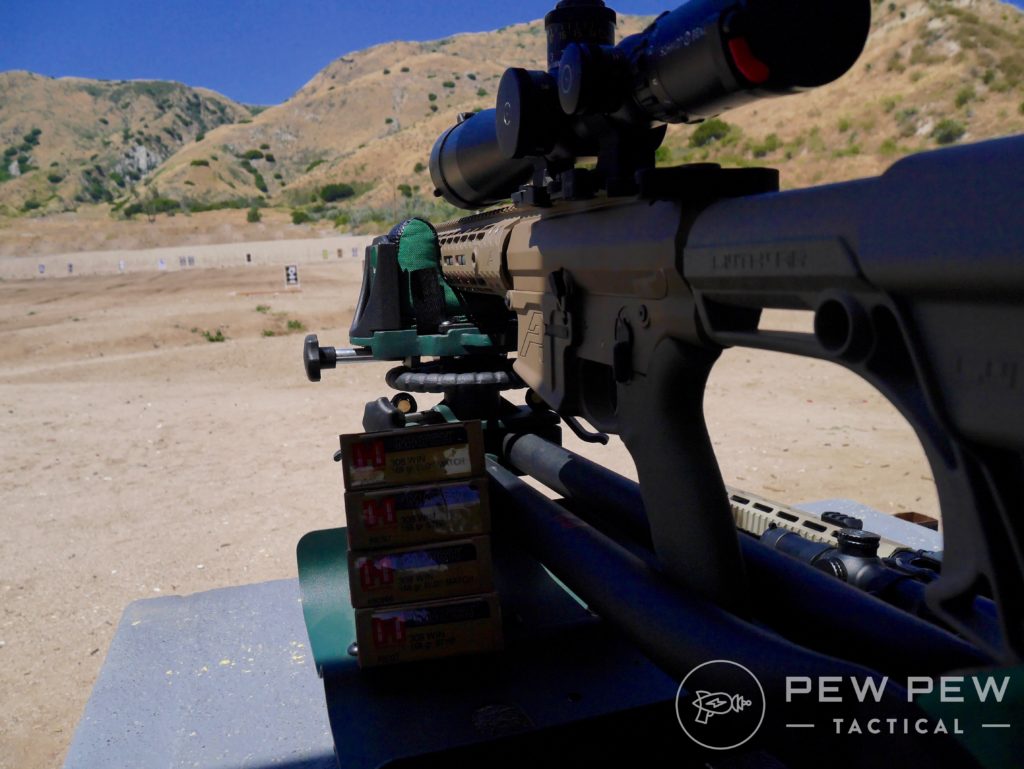

How Does it Shoot?

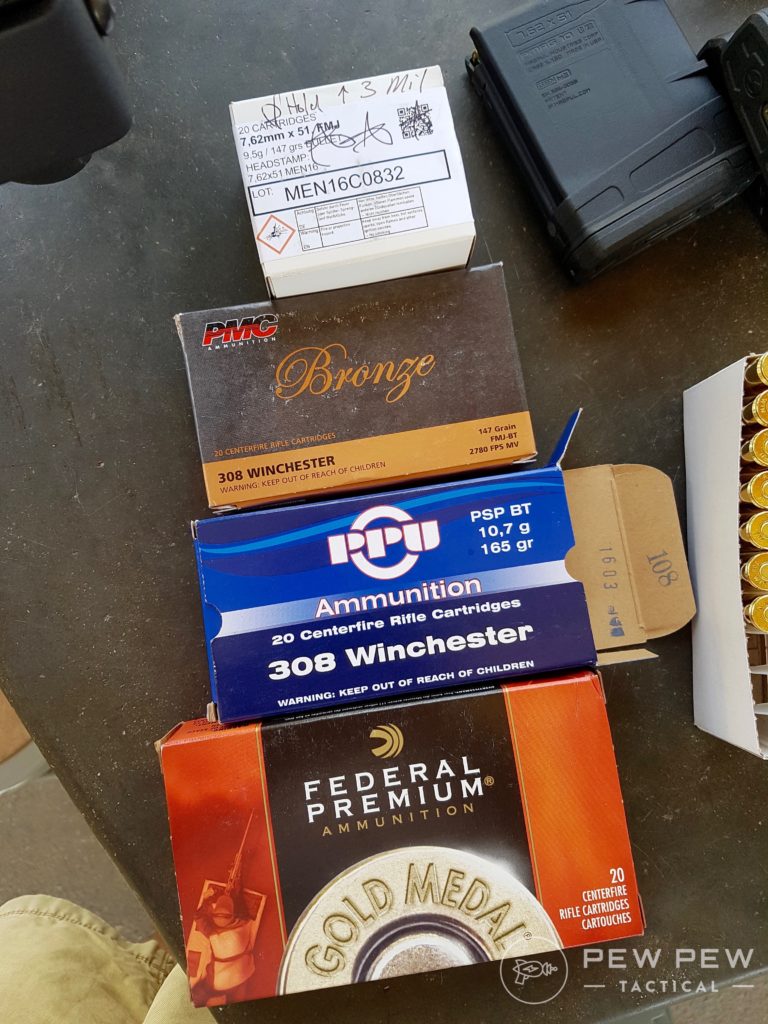

My other .308’s have been temperamental with ammo so I made sure to get a wide variety…from surplus to expensive match ammo…and all the bullet weights I could find. I quickly wiped everything down, cleaned the barrel, and lubed all the important bits. And off to the range I went…3x in total.Accuracy Tests
- Lead Sled DFT ($200)
- Schmidt & Bender PMII 5-25x Scope with Larue Mount ($3500)
- ALG ACT Trigger ($70)
- NATO 7.62x51mm 147 gr MEN (cheapest milsurp I could find)
- PMC .308 147 gr (my go-to brand for .223 so I figured I’d try out their .308 variety)
- PPU .308 165 gr
- Federal Gold Medal .308 168 gr (the “gold” standard)
- Handloaded 190 gr (what worked best in my other .308 DPMS rifle, not shown)

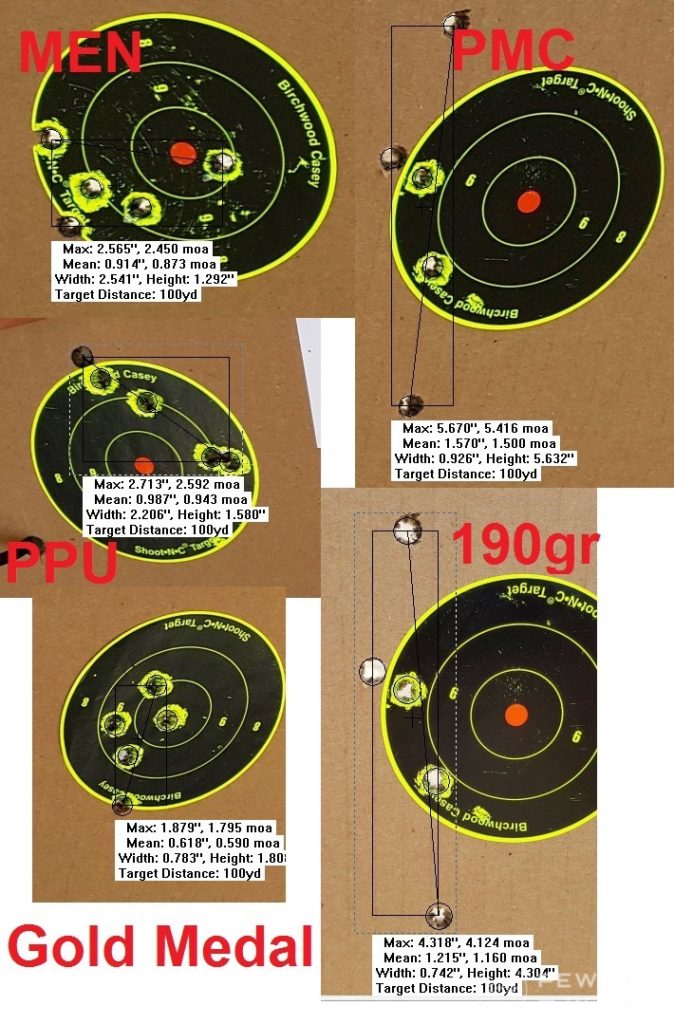

- MEN 147 gr: 2.45 MOA
- PMC 147 gr: 5.42 MOA
- PPU 165 gr: 2.60 MOA
- Gold Medal 168 gr: 1.76 MOA (best of the day)
- 190 gr: 4.12 MOA
- Black Hills Match
- Remington Premier Match

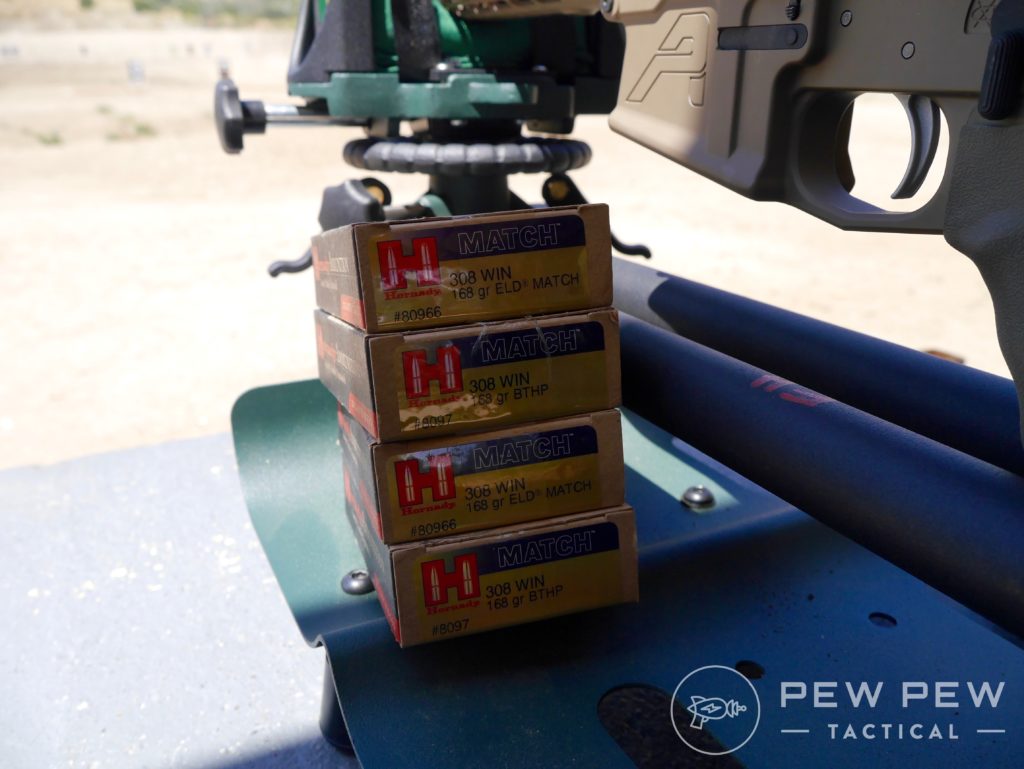

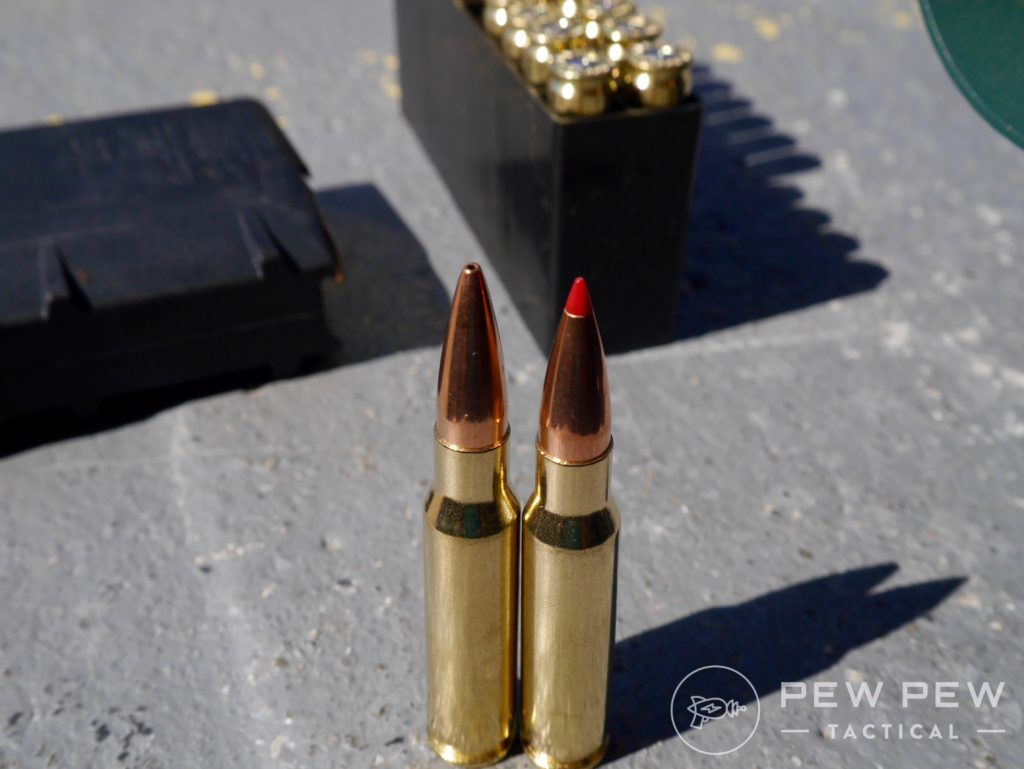

- Hornady Match 168 gr HTHP (top rec)
- Hornady Match 168 gr ELD (top rec)

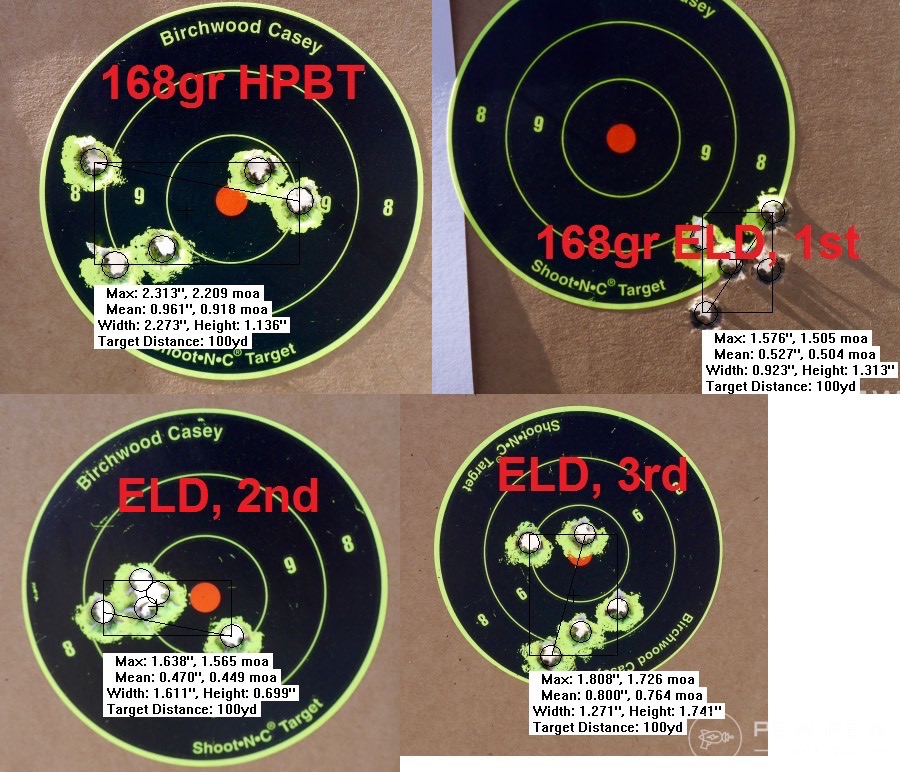

- Hornady 168 gr BTHP: 2.21 MOA
- Hornady 168 gr ELD: 1.51, 1.57, 1.73 MOA
Recoil/Shootability
You’re going to feel it a lot more than the AR-15. You’ve got to get good placement in your shoulder and make sure your ear protection would bite against your buttstock. But with the VG6 Gamma brake it’s not too bad. Once I took it off the lead sled and put on my final optic, my Nightforce NXS 2.5-10x ($1700), it was fun lying prone and ringing steel out to 600 yards (max for my range).
By the Numbers
Reliability: 5/5
No failures in the ~300 rounds I’ve fired. I’ve been using Magpul 10 rounders ($17).
Accuracy: 4/5
You’ll see up to 2.5 MOA with cheap ammo but once you start going Match…you’ll see it drop to 1.5 MOA. If you start reloading…you’ll likely see much better results. And you probably want to reload unless you’re a true baller and $2 match rounds don’t phase you.Ergonomics: 4.5/5
The handguard feels great and so does the new grip…I would have opted out of the Luth buttstock and go with the Magpul PRS that Aero installs on the complete rifle. They knew what they were doing.Looks: 5/5

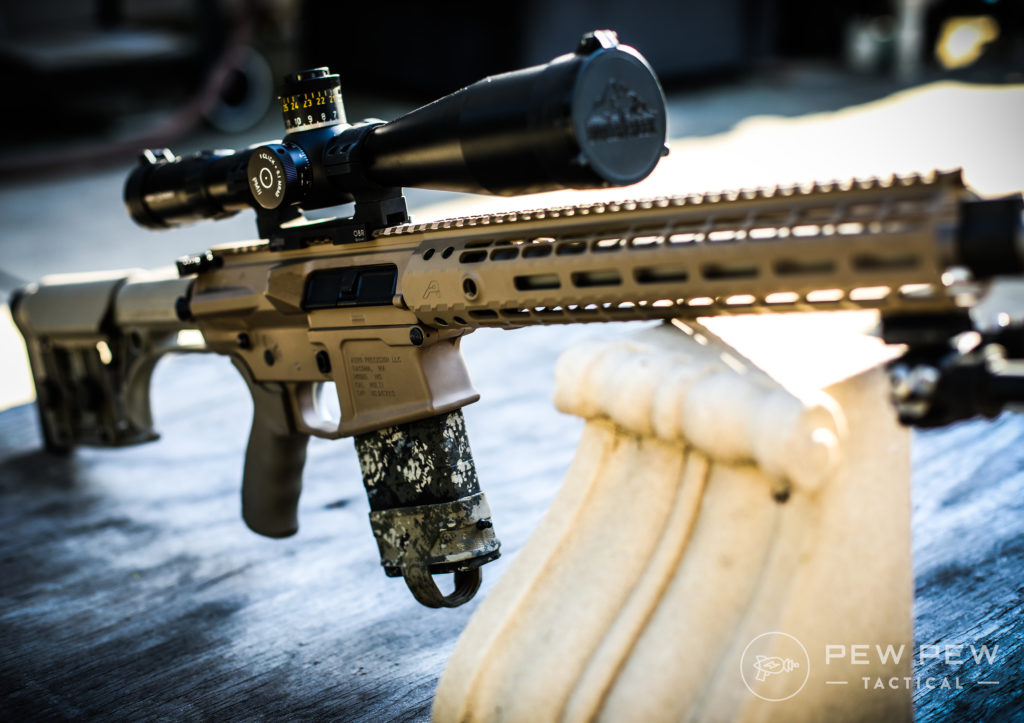

It’s just so sexy!
Customization: 5/5
It’s basically a bigger AR-15 with M-Lok and Picatinny rails so the sky’s the limit. Check out my list of the best AR-15 upgrades if you need help.Bang for the Buck: 4.5/5
I loved the Aero M4E1 and all their stripped uppers/lowers…the .308 M5E1 is no different. You get something that is great to look at, feels great in hand, shoots accurately, and is 100% reliable. If you’re looking to save…you can go down to a 16″ barrel which has always shot fine for me beforehand too.Overall Rating: 5/5
Conclusion

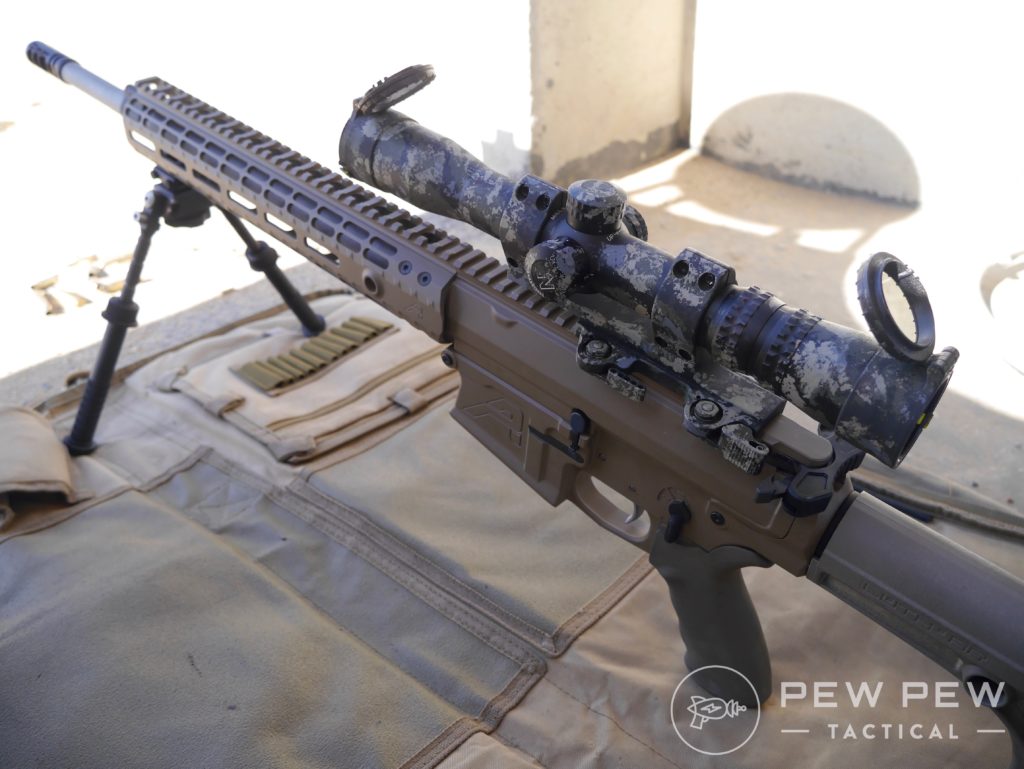

If you’ve made the jump from AR-15 to it’s big boy .308 brother…the Aero M5E1 ($1500-1800) is a great choice. Or if you’re like me and like to spec your other parts, the lower and complete upper are my top choices as well. Want more choices? Check out our Best AR-10s Guide.
