1:9, 1:8, or a 1:7?
When it comes to AR-15 barrels…you may be noticing different rifle twists in their specs.
Does it really matter that much?
Will the wrong weight bullet for your twist rate make it fly off into the sunset?
Table of Contents
Loading…
Bullet Weight Does Not Dictate Barrel Twist
The first thing that needs to be understood is that bullet weight does not directly have anything to do with what rifle twist you should be using in your AR15 barrel chambered in 5.56 NATO or .223 Wylde. Now before some people start pounding their table, and grabbing pitchforks, let me explain. Bullet length is what ultimately dictates your barrel rifling twist. If you do a quick google image search, you will find a few different charts or graphs that specifically show bullet weight and which rifle twist you “need”.
A Cliff Notes History Lesson

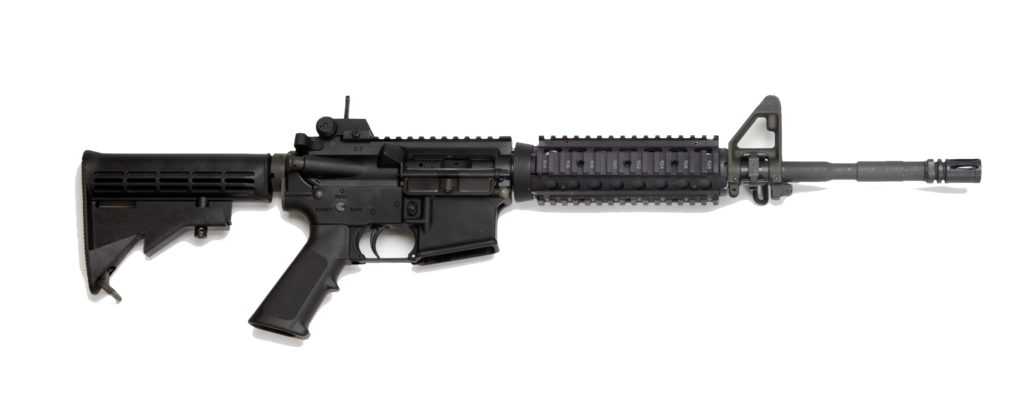

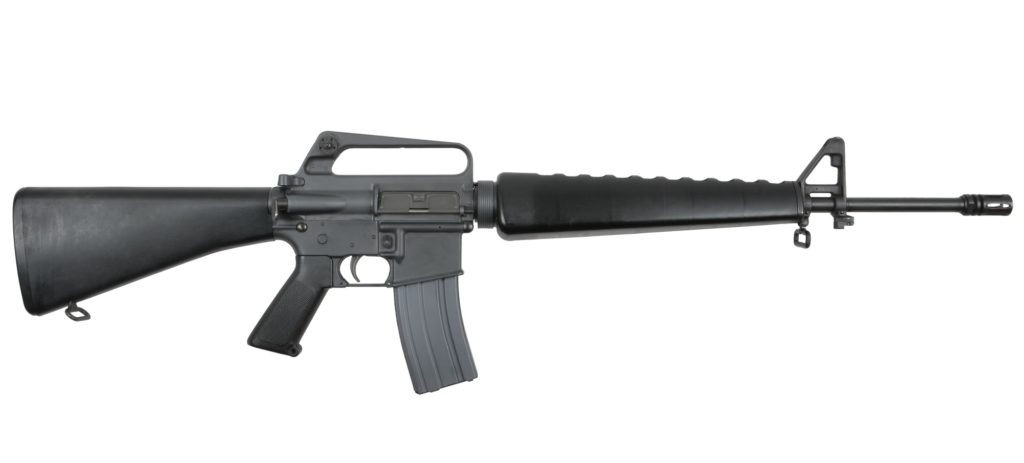

In the early years of the AR15’s development, the rifling twist that was adopted was a 1:14 rifle twist. The easiest way to explain what that means is that the rifling makes a complete twist 1 time every 14″. Most loads shot through these barrels were a very short, lightweight bullet in the 40-55 grain category. You can read a more complete history of the M16, but for now, let’s fast forward to the present.
Best 5.56 XM855 (Green Tip)
$399
at Palmetto State Armory
Prices accurate at time of writing
Prices accurate at time of writing
Available Coupons
-
25% off all OAKLEY products – OAKLEY25
Copied! Visit Merchant
Capitalism at Its Finest
So why are there multiple rifle twists on the civilian market with the 1:9, 1:8, and the 1:7 as stated before? Short answer: Capitalism.
If you are a red-blooded American, you enjoy the perks of capitalism.
The one drawback of capitalism though is that the market breeds more choices and more decisions. A lot of barrel manufacturers sell all of the top three rifle twists in their barrels, and it can be a little daunting when you are trying to figure out which one to get.
We covered the fact that you need to properly stabilize a bullet, and we have covered a quick history of different rifle twists. Stick with me here, because I am going to make this a very easy decision for you.
A Lot of Bad Info
Out in the unnatural world of the interwebs, you can run into a lot of bad information regarding practically anything. Rifle twist and bullet choice are no different. When it comes to slower rifle twist, i.e. 1:14, 1:12, 1:9, you really shouldn’t be shooting bullet weights over 65 grains or the equivalent length for a 65-grain bullet. It won’t damage your rifle, but you will have very poor accuracy.
Shoot, Switch Ammo, Repeat

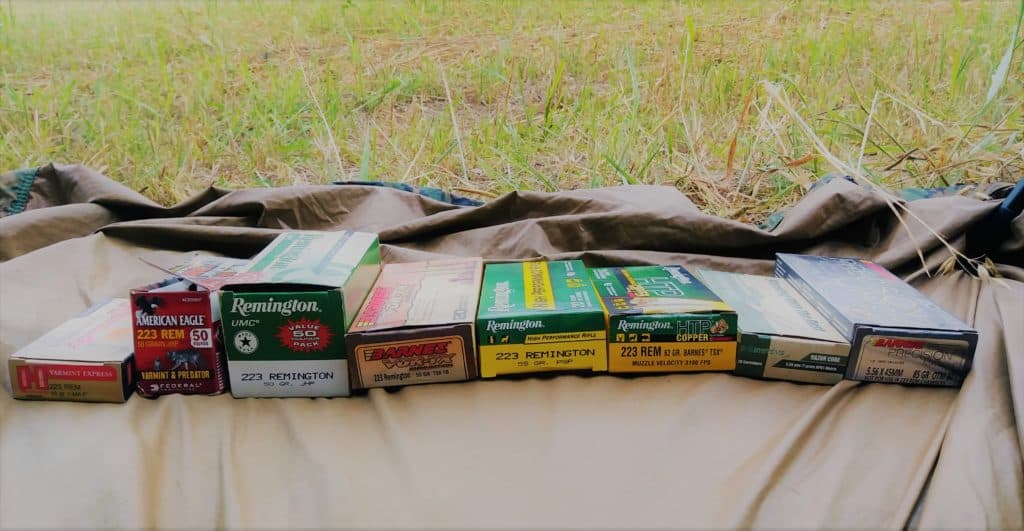

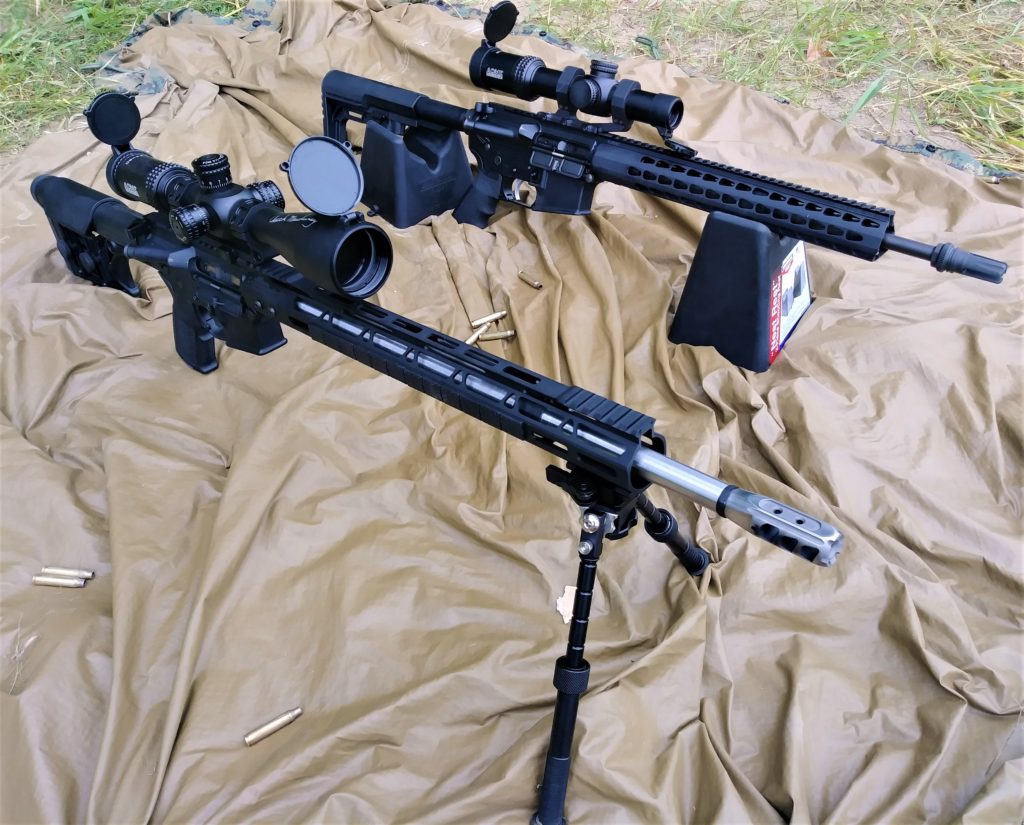

I decided to run through a little experiment with multiple loads of .223 Remington and 5.56 NATO. Ten different loads to be exact. And to make this even more scientific, I did it with two different rifles that both have a 1:7 rifle twist. The first rifle that I tested is a home-rolled rifle that utilizes a Radical Barrels, LLC 20″ 416R stainless barrel. Rick Hoffmeyer of Radical Barrels, LLC made it for me, and it’s a fantastic barrel. The optic on this rifle is an ACME Machine 6-24x50mm FFP TR-MOA. For the price, it is hard to beat for a first-focal-plane optic.
Available Coupons
-
25% off all OAKLEY products – OAKLEY25
Copied! Visit Merchant
- Hornady 40 Grain V-Max
- Winchester 45 Grain JHP
- Federal 50 Grain JHP (Varming & Predator)
- Remington UMC 50 Grain JHP
- Tul-Ammo 55 grain FMJ (Just for the hell of it.)
- Barnes 55 Grain TSX
- Remington 55 Grain PSP
- Barnes 62 Grain TSX
- IMI 77 Grain OTM Razorcore
- Barnes 85 Grain OTM
Moment of Truth

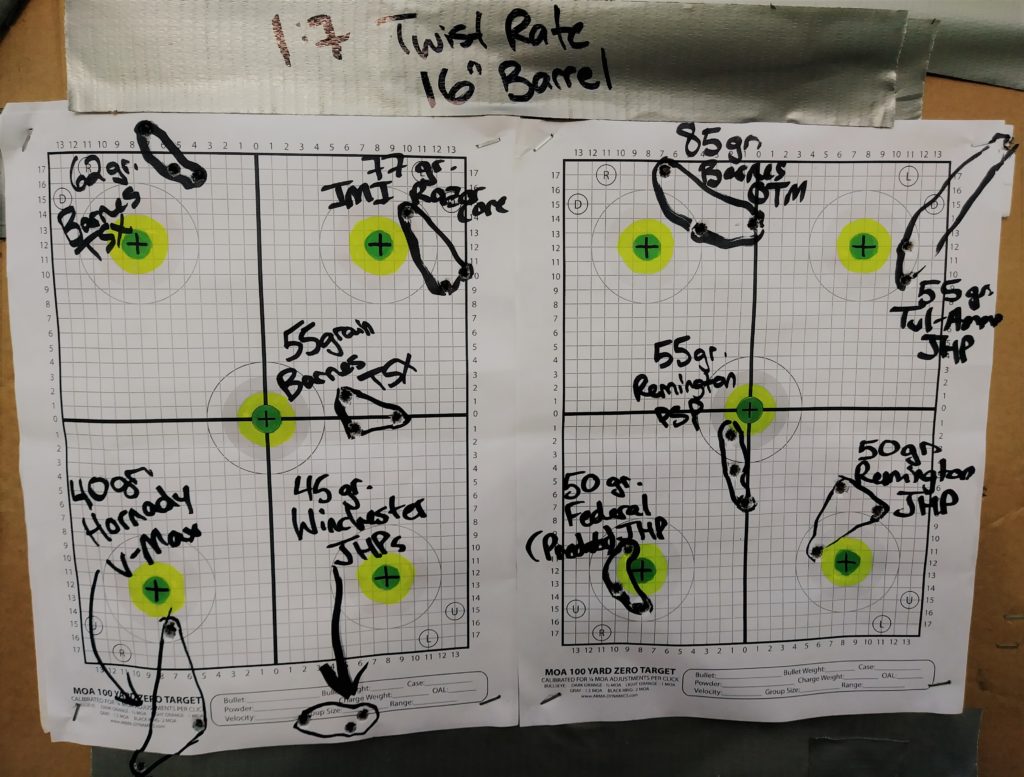

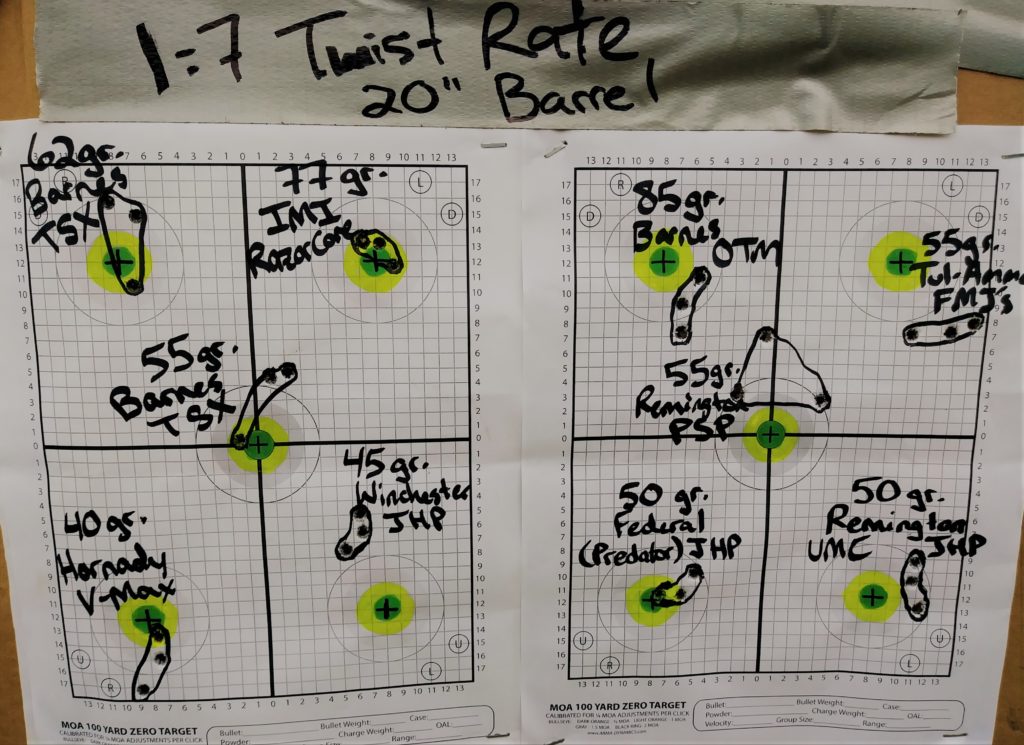

With ten different loads, all varying from the lightest/shortest to the heaviest/longest projectile that will fit inside the mag well of an AR15, I went about firing 3 round groups with each load at 100 yards to test how well each bullet would do. I fully understand that some purists may be wringing their hands in the air because I did not do 5 shot groups. I get it. When I really test accuracy for a specific load, I fire 5-10 round groups to really see its potential. The reality of the situation is that I have kids to feed, and a wife that will literally stab me to death in my sleep if I drain my bank account for ammo. She showed me the knife…Best Budget Survival Knife
Available Coupons
-
25% off all OAKLEY products – OAKLEY25
Copied! Visit Merchant
Decisions, decisions…

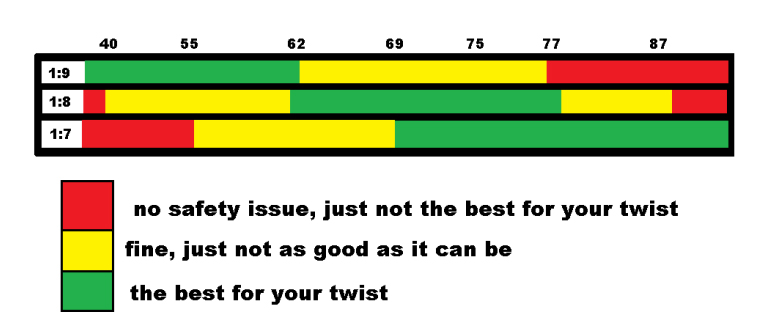

So its time to pay the piper, and make a decision on the rifling twist that will best suit your needs as a shooter. My vote is a 1:7, hands down. With a 1:7 rifle twist, shooting quality ammo, you can go as light as you would like with commercially available ammunition. A case could be made that “over-stabilization” can bring about issues at extended ranges, but why would you honestly shoot a 40-grain projectile past 300 yards? If you are actually trying for accuracy at extended ranges of 300-700 yards, a 69-85 grain bullet is much better suited for the task at hand. For up-close shooting drills, or within 300 yards, bulk 55 grain M193 will do just fine as well out of a quality barrel when you are on a budget.Best 5.56 XM193 55 gr
$16
at Palmetto State Armory
Prices accurate at time of writing
Prices accurate at time of writing
Available Coupons
-
25% off all OAKLEY products – OAKLEY25
Copied! Visit Merchant
